Fireball Tool Standard Duty Welding Table 8.5′ x 4.5′ (102″ x54″ x 6″)

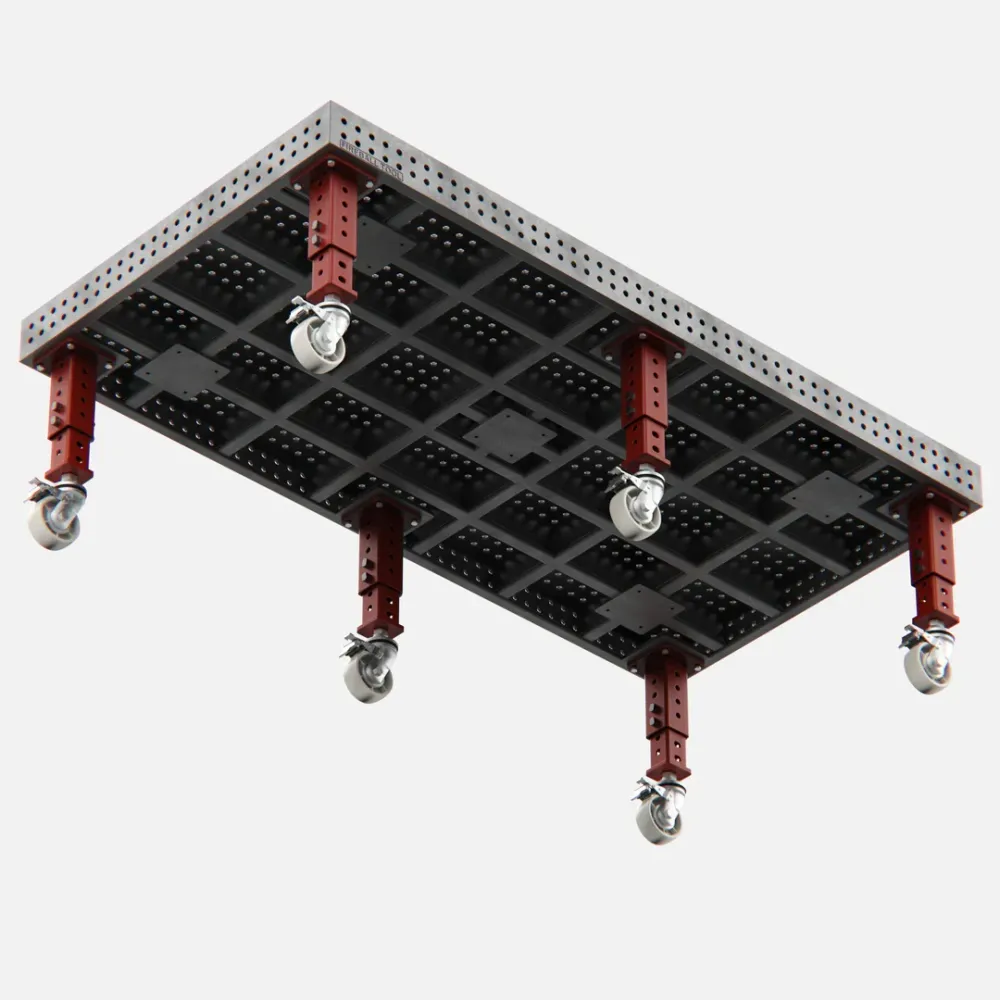

Leg Option: Adjustable Height + Caster – 3/4″ System
- Coating- Corrosion, spatter, and scratch resistant Dragon Scale
- Ribbing- Full height 6″ ribbing engineered to torsional rigidity
- Holes- All counterbore and chamfered on back sides
- Side face on the tables are 6″ tall with 1 row of holes.
- The modular leg accessory system provides an extensive range of customization options.
- 1/2″ thick table that shares all the same fixtures as the 1″ thick table.
- Flatness (+/- .005) full length, corner to corner
What Is Dragon Scale Coating?
- Superior Anti-Spatter Properties
- Improved Corrosion Resistance
- Enhanced Wear Resistance
| Specification | Details |
|---|---|

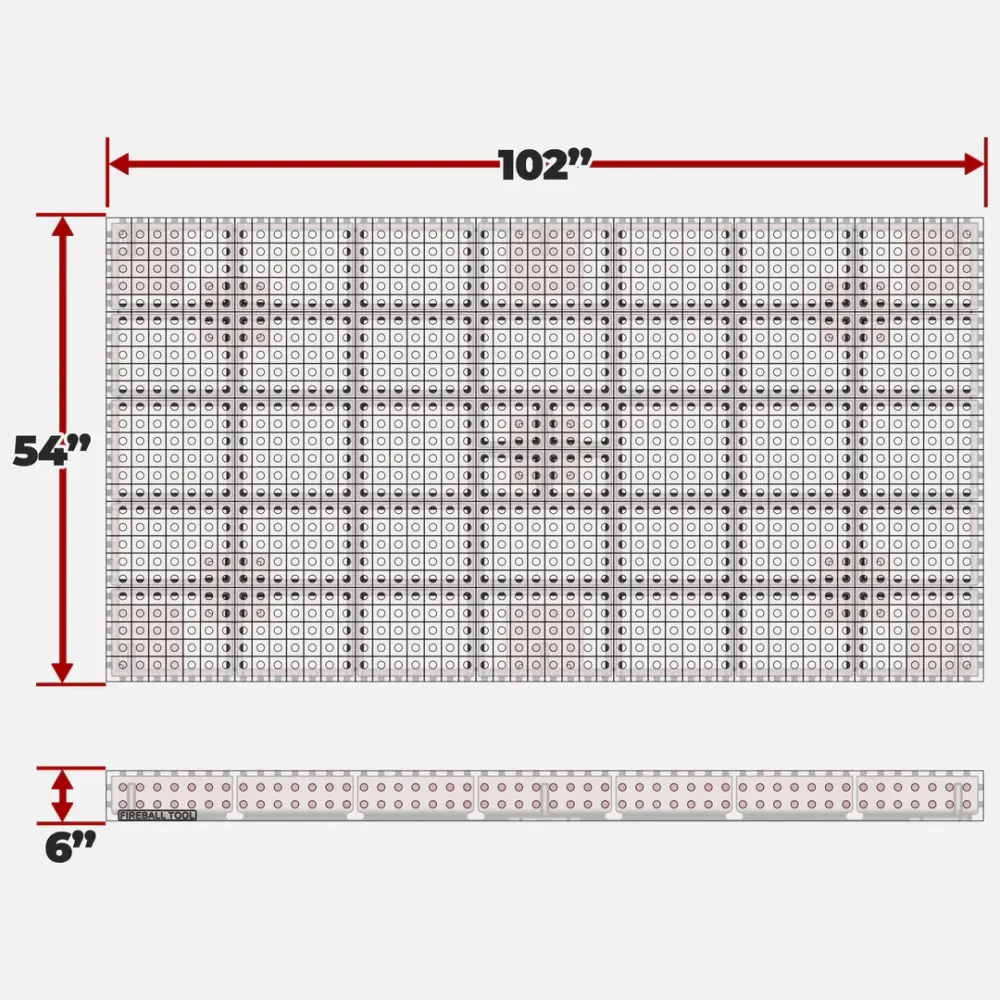

| Tabletop Dimensions | 8.5′ x 4.5′ (102″ x 54″ x 6″) |
| Table Side Height | 6″ |
| Table Thickness | 1/2″ |
| Hole Diameter | 3/4″ |
| Grid Pattern | 2″ |
| Material | Gray Cast Iron |
| Finish | Dragon Scale |
| Leg Type | Heavy Duty |
| Number of Legs | 6 |
| Capacity Per Leg | 1,500 lbs |
| Rated Weight Capacity with Legs | 6,500 lbs |
Part Number: FA75-TCF10254-F2-C1
