BuildPro Alpha 28 Table Legs
Alpha 28 Welding Tables come with a wide range of mounting options to suit every workspace. Legs are ordered individually and the quantity required will vary depending on table size.
Legs mount onto plates at the bottom of the table. Leveling feet with spindles at the bottom of the legs offer fine adjustment and leveling.
| Part No. | Description | Height (mm) | Spindle Adjustment Range (mm) | Static Load Capacity (kg) | Weight (kg) |

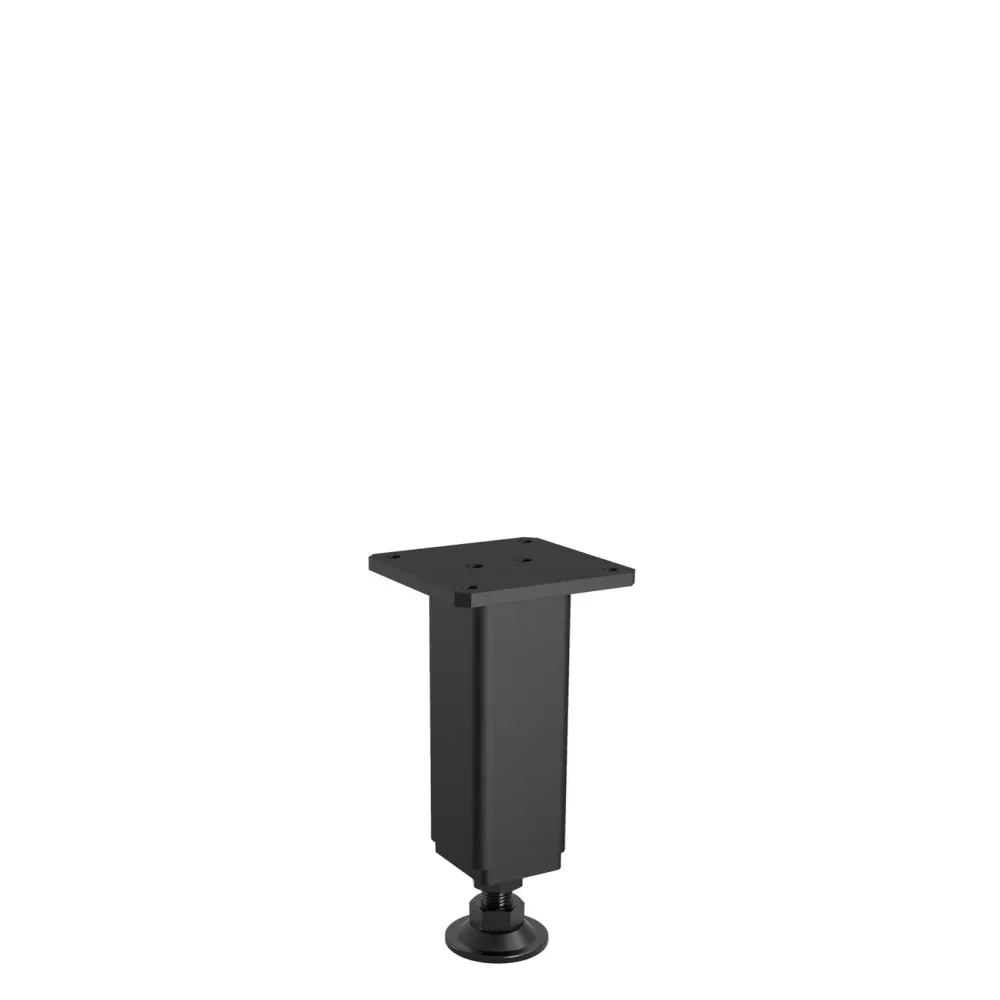

| T28-81004 | 350 mm H fixed length | 350 | 35 | 2,000 | 11.5 |

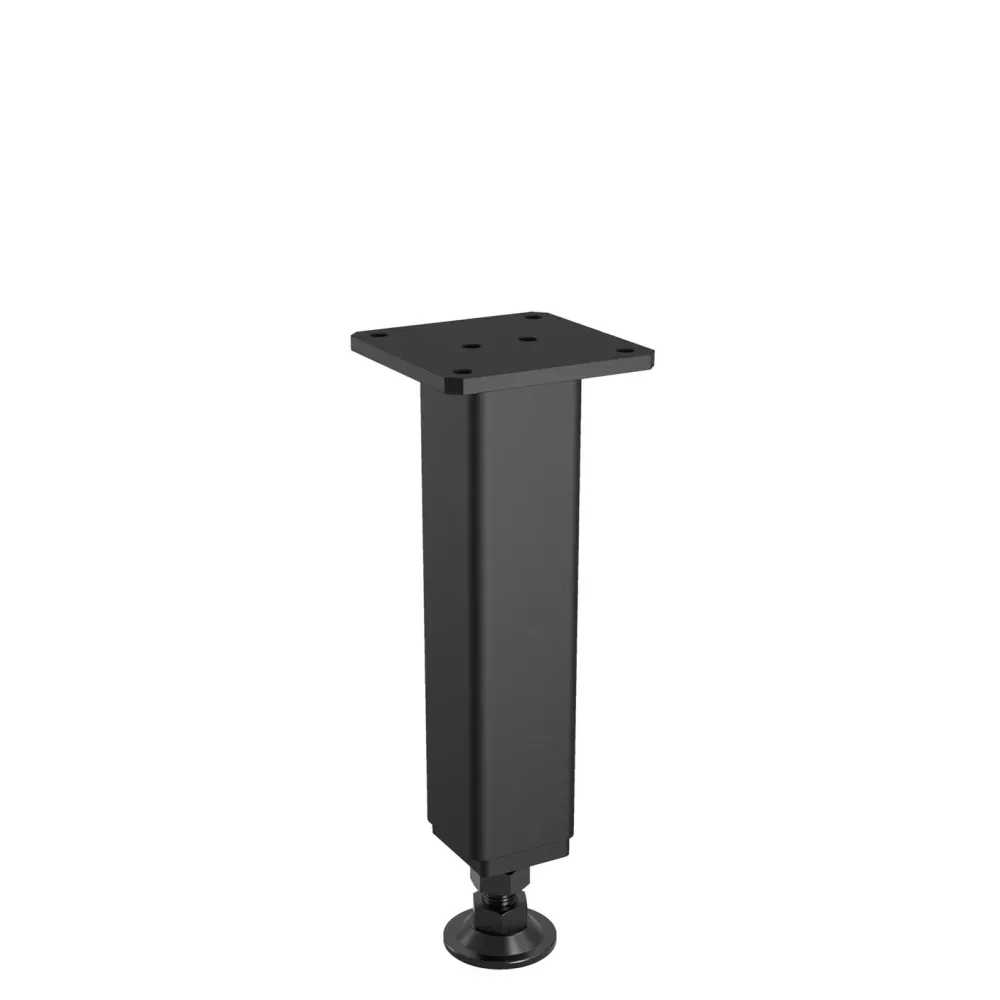

| T28-81005 | 500 mm H fixed length | 500 | 35 | 2,000 | 12.5 |

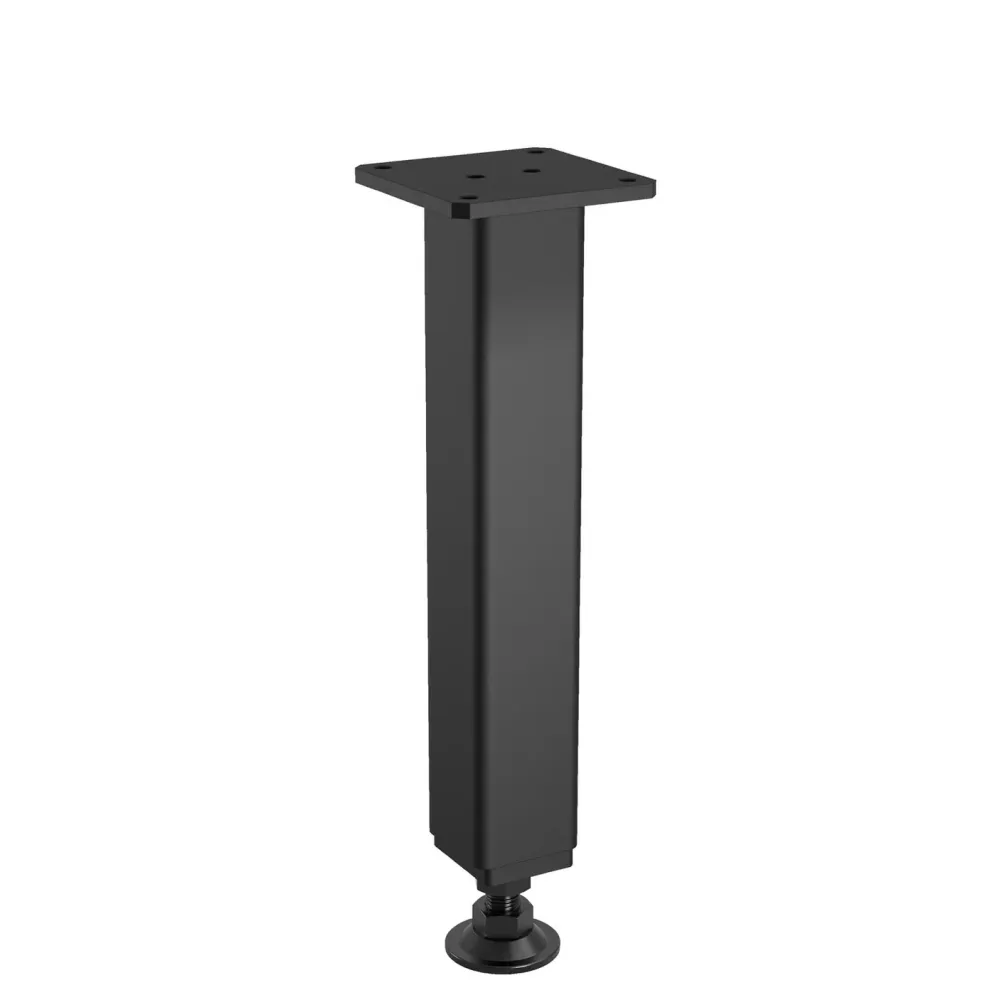

| T28-81007 | 650 mm H fixed length | 650 | 35 | 2,000 | 14 |
| T28-82009 | Height-adjustable Leg 610 – 900 mm | 610 – 900 | 35 | 2,000 | 18.5 |

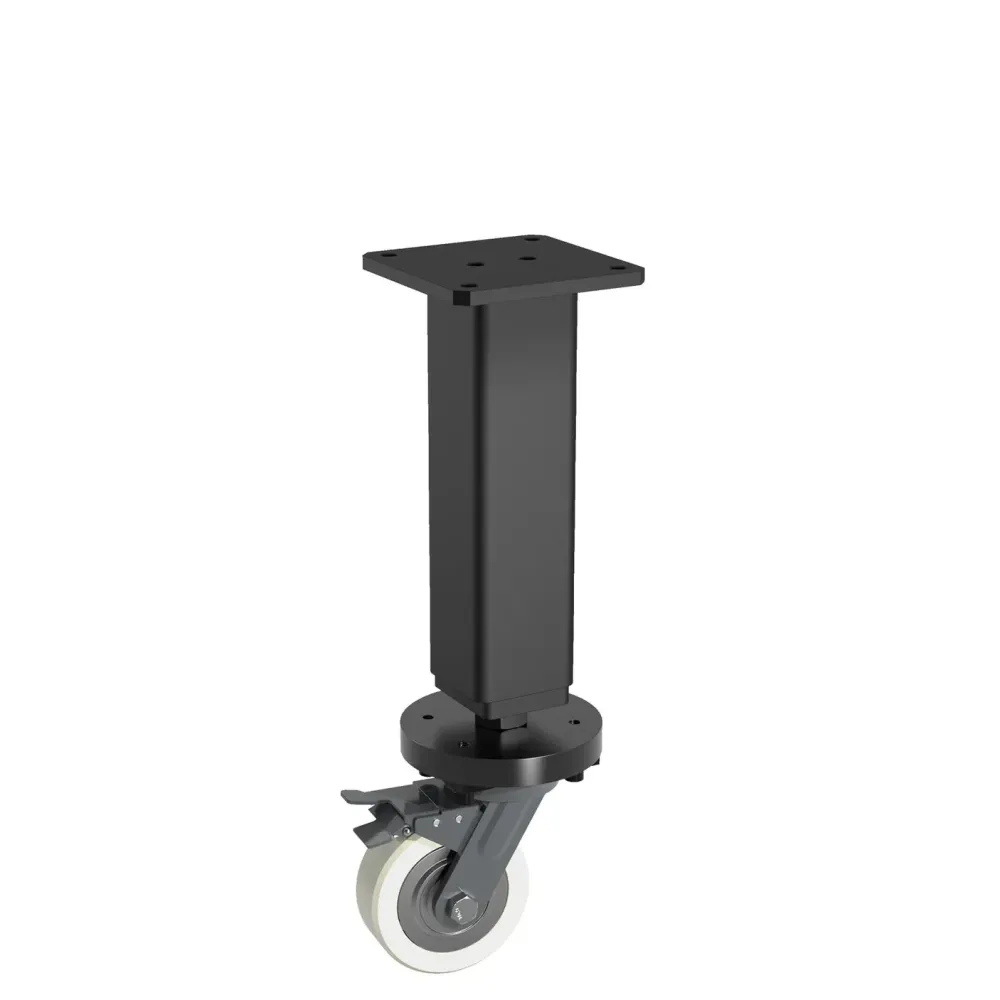

| T28-81406 | Leg with Caster and Locking Brake 640 mm | 640 | 20 | 800 | 16.5 |

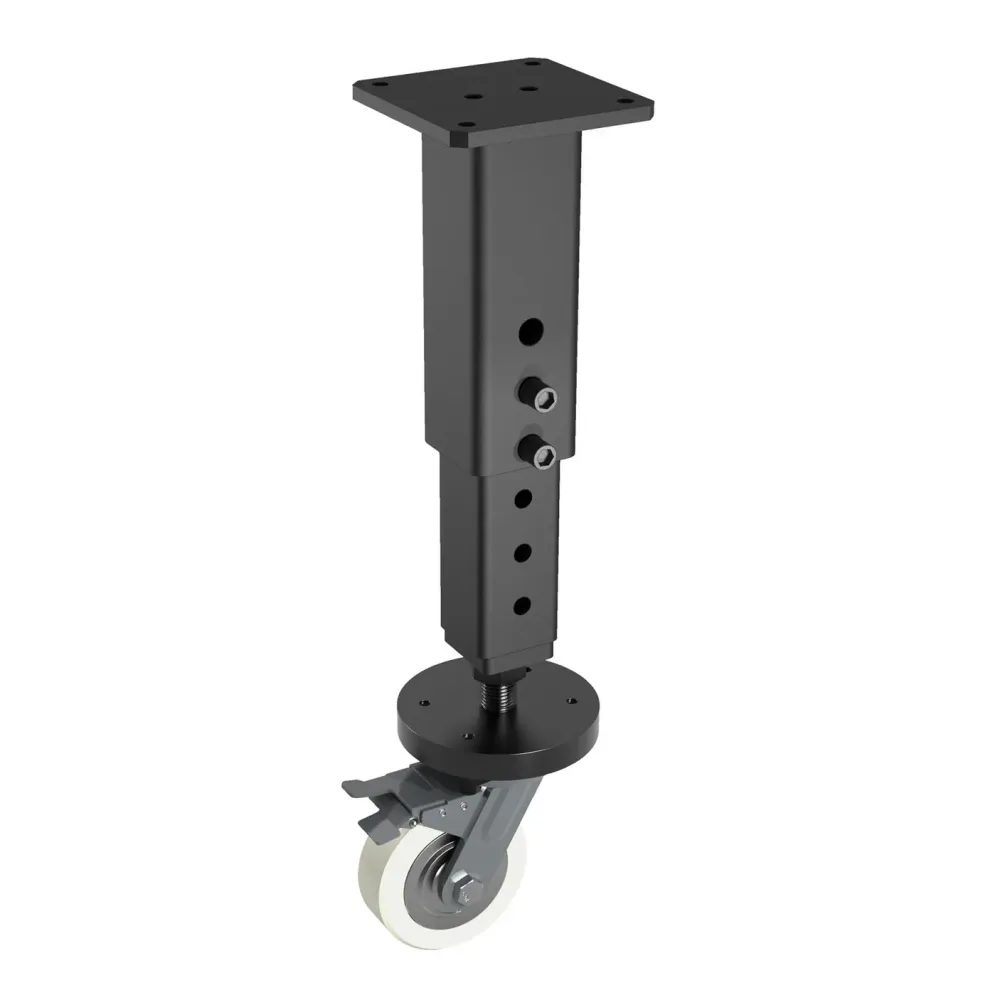

| T28-82407 | Height – adjustable Leg with Caster and Locking Brake 600 – 780 mm | 600 – 780 | 20 | 800 | 20.5 |
